Configuration file specification: Substrate¶

A network.yaml file is the base configuration file designed in Hyperledger Bevel for setting up a Substrate DLT network. This file contains all the configurations related to the network that has to be deployed.

Schema Definition

A json-schema definition is provided in platforms/network-schema.json to assist with semantic validations and lints. You can use your favorite yaml lint plugin compatible with json-schema specification, like redhat.vscode-yaml for VSCode. You need to adjust the directive in template located in the first line based on your actual build directory:

# yaml-language-server: $schema=../platforms/network-schema.json

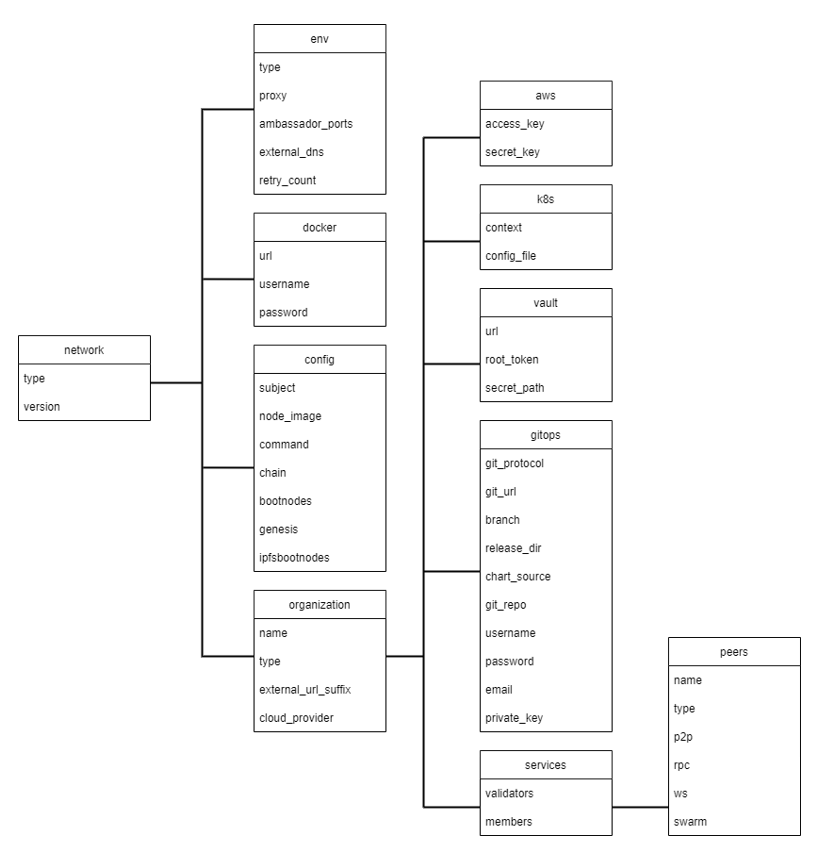

The configurations are grouped in the following sections for better understanding.

type
version
env
docker
config
organizations

Before setting up a Substrate DLT/Blockchain network, this file needs to be updated with the required specifications.

Use this sample configuration file as a base.

---
# yaml-language-server: $schema=../../../../platforms/network-schema.json
# This is a sample configuration file for Substrate based Inteli network which has 3 organizations.
# All text values are case-sensitive
network:
  # Network level configuration specifies the attributes required for each organization
  # to join an existing network.
  type: substrate
  version: v4.3.1  #this is the version of Substrate docker image that will be deployed.

The sections in the sample configuration file are


type: type defines the platform choice like corda/fabric/indy/substrate, here in the example its substrate.

version: version defines the version of platform being used. The current substrate version support is for latest

env: env section contains the environment type and additional (other than 443) Ambassador port configuration. Value for proxy field under this section can only be Ambassador as haproxy has not been implemented for substrate.

The snapshot of the env section with example value is below

  env:
    type: "dscpdev"              # tag for the environment. Important to run multiple flux on single cluster
    proxy: ambassador               # value has to be 'ambassador' as 'haproxy' has not been implemented for Substrate
    proxy_namespace: "ambassador"
    #  These ports are enabled per cluster, so if you have multiple clusters you do not need so many ports
    #  This sample uses a single cluster, so we have to open 4 ports for each Node. These ports are again specified for each organization below
    ambassadorPorts:                # Any additional Ambassador ports can be given here, this is valid only if proxy='ambassador'
      portRange:              # For a range of ports
        from: 15010
        to: 15043
    # ports: 15020,15021      # For specific ports
    retry_count: 20                 # Retry count for the checks on Kubernetes cluster
    external_dns: enabled           # Should be enabled if using external-dns for automatic route configuration

The fields under env section are

Field	Description
type	Environment type. Can be like dev/test/prod.
proxy	Choice of the Cluster Ingress controller. Currently supports 'ambassador' only as 'haproxy' has not been implemented for Substrate
proxy_namespace	Namespace in which the pods of the Cluster Ingress controller were deployed
ambassadorPorts	Any additional Ambassador ports can be given here. This is only valid if `proxy: ambassador`. These ports are enabled per cluster, so if you have multiple clusters you do not need so many ports to be opened on Ambassador. Our sample uses a single cluster, so we have to open 4 ports for each Node. These ports are again specified in the `organization` section.
retry_count	Retry count for the checks. Use a high number if your cluster is slow.
external_dns	If the cluster has the external DNS service, this has to be set `enabled` so that the hosted zone is automatically updated.


docker: docker section contains the credentials of the repository where all the required images are built and stored.

The snapshot of the docker section with example values is below

  # Docker registry details where images are stored. This will be used to create k8s secrets
  # Please ensure all required images are built and stored in this registry.
  # Do not check-in docker_password.
  docker:
    url: "ghcr.io"
    #username: "docker_username"
    #password: "docker_password"

The fields under docker section are

Field	Description
url	Docker registry url
username	Username required for login to docker registry (remove this for public registry)
password	Password required for login to docker registry (remove this for public registry)


config: config section contains the common configurations for the Substrate network.

The snapshot of the config section with example values is below

  # Following are the configurations for the common Substrate network
  config:
    ## Certificate subject for the root CA of the network.
    #  This is for development usage only where we create self-signed certificates and the truststores are generated automatically.
    #  Production systems should generate proper certificates and configure truststores accordingly.
    subject: "CN=DLT Root CA,OU=DLT,O=DLT,L=London,C=GB"
    # Provide the docker image which will be used for the Substrate Nodes in this network. (will be downloaded from docker.url)
    node_image: "inteli-poc/dscp-node"
    # Provide the command which is used to start the node
    command: "./dscp-node"     # Please ensure the command corresponds to the node_image above
    # provide a chain name for Substrate nodes
    chain: "inteli"
    # NOTE for the below paths, the directories should exist
    genesis: "/BUILD_DIR/substrate_genesis"   # Location where information is read or saved if empty
    bootnodes: "/BUILD_DIR/substrate_bootnodes" # Location where bootnodes information is read or saved if empty
    ipfsbootnodes: "/BUILD_DIR/ipfs_bootnodes" # Location where IPFS bootnodes information is read or saved if empty

The fields under config are

Field	Description
subject	This is the subject of the root CA which will be created for the Substrate network. The root CA is for development purposes only, production networks should already have the root certificates.
node_image	This is image name in which will be pulled from the specified docker registry.
command	This is the command which will run on the substrate node once it is alive.
chain	This is the name of the chain which is used for the substrate nodes and genesis.
bootnodes	Location where bootnode information is read or stored if empty, this is for bootnodes specified in the organization section of the configuration file.
genesis	This is the path where genesis.json will be stored for a new network.
ipfsbootnodes	Location where IPFS bootnode information is read or stored if empty, this is for IPFS nodes when you are deploying a DSCP network.


organizations: The organizations section contains the specifications of each organization.

In the sample configuration example, we have four organization under the organizations section.

The snapshot of an organization field with sample values is below

  # Allows specification of one or many organizations that will be connecting to a network.
  organizations:
    # Specification for the 1st organization. Each organization should map to a VPC and a separate k8s cluster for production deployments
    - organization:
      name: oem
      type: superuser
      persona: buyer
      external_url_suffix: test.subs.blockchaincloudpoc.com   # This is the url suffix that will be added in DNS recordset. Must be different for different clusters
      cloud_provider: aws   # Options: aws, azure, gcp

Each organization under the organizations section has the following fields.

Field	Description
name	Name of the organization
type	Specifies the organization as the superuser/owner.
persona	This is used for DSCP app and can be buyer, supplier or thirdparty.
external_url_suffix	Public url suffix of the cluster.
cloud_provider	Cloud provider of the Kubernetes cluster for this organization. This field can be aws, azure, gcp or minikube
aws	When the organization cluster is on AWS
k8s	Kubernetes cluster deployment variables.
vault	Contains Hashicorp Vault server address and root-token in the example
gitops	Git Repo details which will be used by GitOps/Flux.
services	Contains list of services which could ca/peer/orderers/concensus based on the type of organization

For the aws, k8s and vault field the snapshot with sample values is below

      aws:
        access_key: "AWS_ACCESS_KEY"        # AWS Access key, only used when cloud_provider=aws
        secret_key: "AWS_SECRET_KEY"        # AWS Secret key, only used when cloud_provider=aws

      # Kubernetes cluster deployment variables. The config file path and name has to be provided in case
      # the cluster has already been created.
      k8s:
        context: "CLUSTER_CONTEXT"
        config_file: "/BUILD_DIR/config"
      # Hashicorp Vault server address and root-token. Vault should be unsealed.
      # Do not check-in root_token
      vault:
        url: "http://VAULT_URL:VAULT_PORT"
        root_token: "VAULT_TOKEN"
        secret_path: "secretsv2"

The aws field under each organization contains: (This will be ignored if cloud_provider is not aws)

Field	Description
access_key	AWS Access key
secret_key	AWS Secret key

The k8s field under each organization contains

Field	Description
context	Context/Name of the cluster where the organization entities should be deployed
config_file	Path to the kubernetes cluster configuration file

The vault field under each organization contains

Field	Description
url	url of the vault server including port
root_token	root token of the vault server required to access the contents of the vault
secret_path	the path in which secrets are stored, used to store and retrieve secrets from the vault

For gitops fields the snapshot from the sample configuration file with the example values is below

      # Git Repo details which will be used by GitOps/Flux.
      # Do not check-in git_access_token
      gitops:
        git_protocol: "https" # Option for git over https or ssh
        git_url: "https://github.com/<username>/bevel.git"         # Gitops https or ssh url for flux value files
        branch: "substrate"           # Git branch where release is being made
        release_dir: "platforms/substrate/releases/dev" # Relative Path in the Git repo for flux sync per environment.
        chart_source: "platforms/substrate/charts"     # Relative Path where the Helm charts are stored in Git repo
        git_repo: "github.com/<username>/bevel.git"   # Gitops git repository URL for git push
        username: "GIT_USERNAME"          # Git Service user who has rights to check-in in all branches
        password: "GIT_TOKEN"          # Git Server user password/token (Optional for ssh; Required for https)
        email: "git@email.com"                # Email to use in git config
        private_key: "/BUILD_DIR/gitops"          # Path to private key file which has write-access to the git repo (Optional for https; Required for ssh)

The gitops field under each organization contains

Field	Description
git_protocol	Option for git over https or ssh. Can be `https` or `ssh`
git_url	SSH or HTTPs url of the repository where flux should be synced
branch	Branch of the repository where the Helm Charts and value files are stored
release_dir	Relative path where flux should sync files
chart_source	Relative path where the helm charts are stored
git_repo	Gitops git repo URL https URL for git push like "github.com/hyperledger/bevel.git"
username	Username which has access rights to read/write on repository
password	Password of the user which has access rights to read/write on repository (Optional for ssh; Required for https)
email	Email of the user to be used in git config
private_key	Path to the private key file which has write-access to the git repo (Optional for https; Required for ssh)

The services field for each organization under organizations section of Substrate contains list of services.

Each organization will have a services section which includes details of all the peers, all participating nodes are names as peers. The snapshot of peers service with example values is below

      services:
        peers:
        - peer:
          name: oem-bn
          subject: "O=OEM,OU=OEM,L=51.50/-0.13/London,C=GB" # This is the node subject. L=lat/long is mandatory for supplychain sample app
          type: bootnode         # value can be validator or bootnode ( or ipfs, for vitalAM)
          p2p:
            port: 30333
            ambassador: 15010       #Port exposed on ambassador service (use one port per org if using single cluster)
          rpc:
            port: 9933
          ws:
            port: 9944
        - peer:
          name: validator1
          subject: "O=Validator1,OU=Validator1,L=51.50/-0.13/London,C=GB" # This is the node subject. L=lat/long is mandatory for supplychain sample app
          type: validator         # value can be validator or bootnode ( or ipfs, for vitalAM)
          p2p:
            port: 30333
            ambassador: 15011       #Port exposed on ambassador service (use one port per org if using single cluster)
          rpc:
            port: 9933
          ws:
            port: 9944
        - peer:
          name: validator2
          subject: "O=Validator1,OU=Validator1,L=51.50/-0.13/London,C=GB" # This is the node subject. L=lat/long is mandatory for supplychain sample app
          type: validator         # value can be validator or bootnode ( or ipfs, for vitalAM)
          p2p:
            port: 30333
            ambassador: 15012       #Port exposed on ambassador service (use one port per org if using single cluster)
          rpc:
            port: 9933
          ws:
            port: 9944
        - peer:
          name: oem-ipfs-bn
          subject: "O=OEMIPFSBoot,OU=OEMIPFSBoot,London,C=GB" # This is the node subject.
          type: ipfs-bootnode         # value can be validator or bootnode ( or ipfs, for vitalAM)
          nodeHost: oem-bn            # peer name of substrate node for IPFS API-WS connection
          p2p:
            port: 30333
            ambassador: 15013       #Port exposed on ambassador service (use one port per org if using single cluster)
          rpc:
            port: 9933
          ws:
            port: 9944
          ipfs:
            swarmPort: 4001
            ambassador: 15014       #Port exposed on ambassador service (use one port per org if using single cluster)
            apiPort: 5001
        - peer:
          name: oem
          subject: "O=OEMIPFS,OU=OEMIPFS,London,C=GB" # This is the node subject.
          type: member         # value can be validator or bootnode ( or ipfs, for vitalAM)
          nodeHost: oem        # peer name of substrate node for IPFS API-WS connection
          p2p:
            port: 30333
            ambassador: 15015       #Port exposed on ambassador service (use one port per org if using single cluster)
          rpc:
            port: 9933
          ws:
            port: 9944
          ipfs:
            swarmPort: 4001
            ambassador: 15016       #Port exposed on ambassador service (use one port per org if using single cluster)
            apiPort: 5001
          api:
            port: 80
          postgresql:
            port: 5432
            user: postgres
            password: "postgres123"
          id_service:
            db_name: "id-service"
            port: 3001
          inteli_api:
            db_name: "inteli-api"
            port: 3000
            ambassador: 443

The fields under peer are

Field	Description
name	Name of the peer
subject	This is the alternative identity of the peer node
type	Type can be `bootnode`, `validator`, `ipfs-bootnode` or `member`
p2p.port	P2P port
p2p.ambassador	The P2P Port when exposed on ambassador service
rpc.port	RPC port
ws.port	WebSocket port
